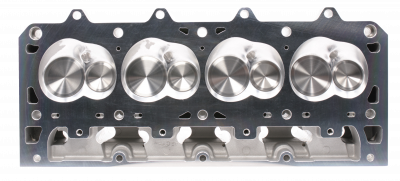

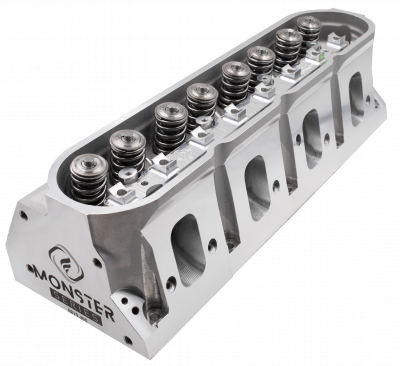

Frankenstein M311 LS3 Port | 11 Degree | 273cc Heads | Assembled | "Small Bore"

Frankenstein Engine Dynamics are specialists in Cylinder Head & induction products dedicated to the LSX engine range.
Their industry leading range has become a serious game changer in the high performance market.
Producing some of the highest performing products all designed in house utilizing the latest CNC technology means you are not only receiving the highest quality products but investing in their development & testing to put yourself ahead of the competition.

Benefits Of The Frankenstein "Monster Series" M311 LS3 Port Cylinder Heads
- Unique 11 Degree Inline Valve Angle;
- A357 T6 Aluminium stronger than competitor brand A356.;
- High Efficiency Water Jackets for increased strength & cooling;
- Increased .750" deck thickness to support large boost applications;
- Exhaust port exit is inline with the valve for substantially improved air flow;
- Suits minimum 4.00" Inch Bore;

Your New Frankenstein F311 LS3 Port Cylinder Heads Include
- Engineered, Machined & Ported in USA;
- LS3 Port CNC Ported Intake Runners | 273cc;
- CNC Ported Exhaust Ports;
- CNC Ported Combustion Chambers | N/A & Boosted Chamber Options;
- Doweled Rocker Stands;
- PAC .700" Lift Dual Valve Spring Kit;
- Titanium Retainers;
- 11 Degree Valve Angle;
- Stainless Steel Intake Valves | 2.165" Inch;
- Stainless Steel Exhaust Valves | 1.600" Inch;

Frankenstein CNC Porting Process
- CNC machining of your cylinder heads intake runner;
- CNC machining of your cylinder heads exhaust port;
- CNC machining & porting of the combustion chamber to specified CC;
- 5 Axis CNC cutting of your cylinder heads valve seats;
- CNC cut valve spring seats;
- Machine the deck face to increase compression;

FED Monster Series M311 Flow Data
