IN STOCK | LS3 416ci N/A Stroker Engine | High Comp
Regular price
$28,500.00 AUD
Sale price
$28,500.00 AUD
Description

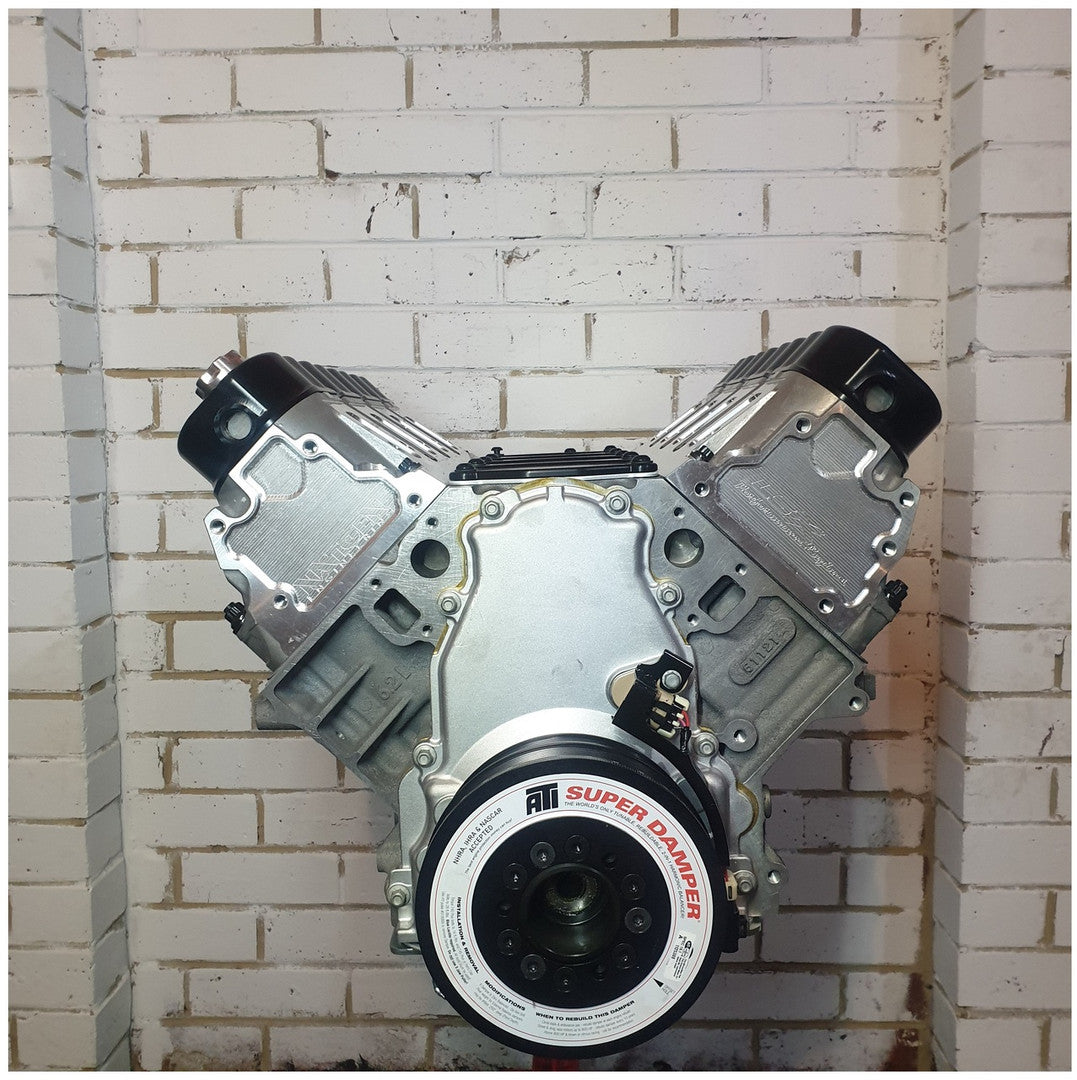

IN STOCK | LS3 416ci N/A Stroker Engine | High Comp
Current product
Current
Vendor:
LSX
IN STOCK | LS3 416ci N/A Stroker Engine | High Comp
Regular price
$28,500.00 AUD
Sale price
$28,500.00 AUD
Options
Descriptions
- No Lengthy Build Times! (We skip the queues by having these build ready to sell!);
- No Out Of Pocket Expense! (No Deposit Required!);
- Pay & Collect OR Expedited Shipping!;
Our LSX N/A High Comp 416ci Engine Package Includes:
Engine Specs
Top End:

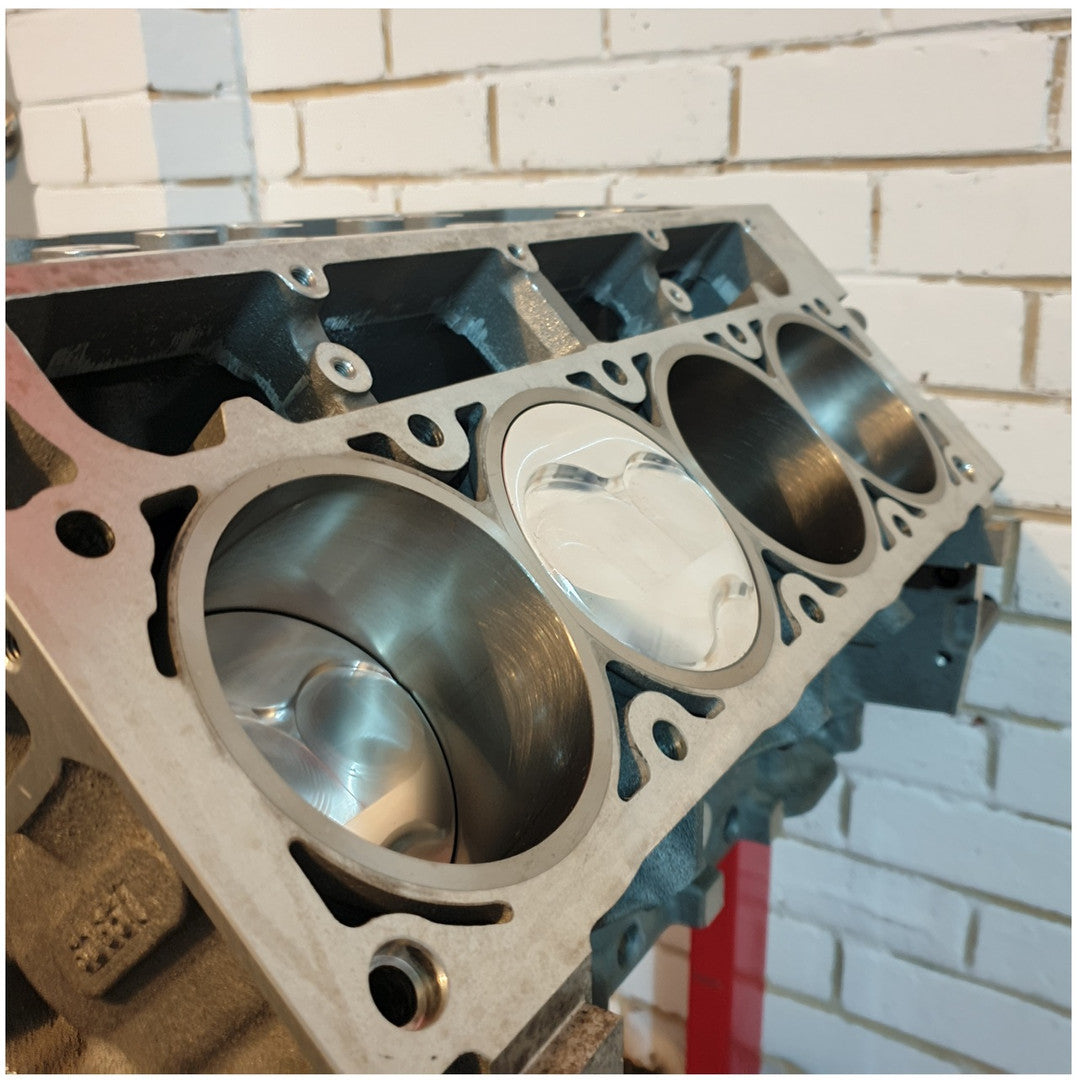

Block GM LS3 6.2L Alloy Block
Crankshaft K1 Technologies 4.00" Inch Forged 4340 Steel
Reluctor Wheel 58 x Tooth
Conrods Callies Compstar 6.125" Conrods with ARP 2000 Series Rod Bolts

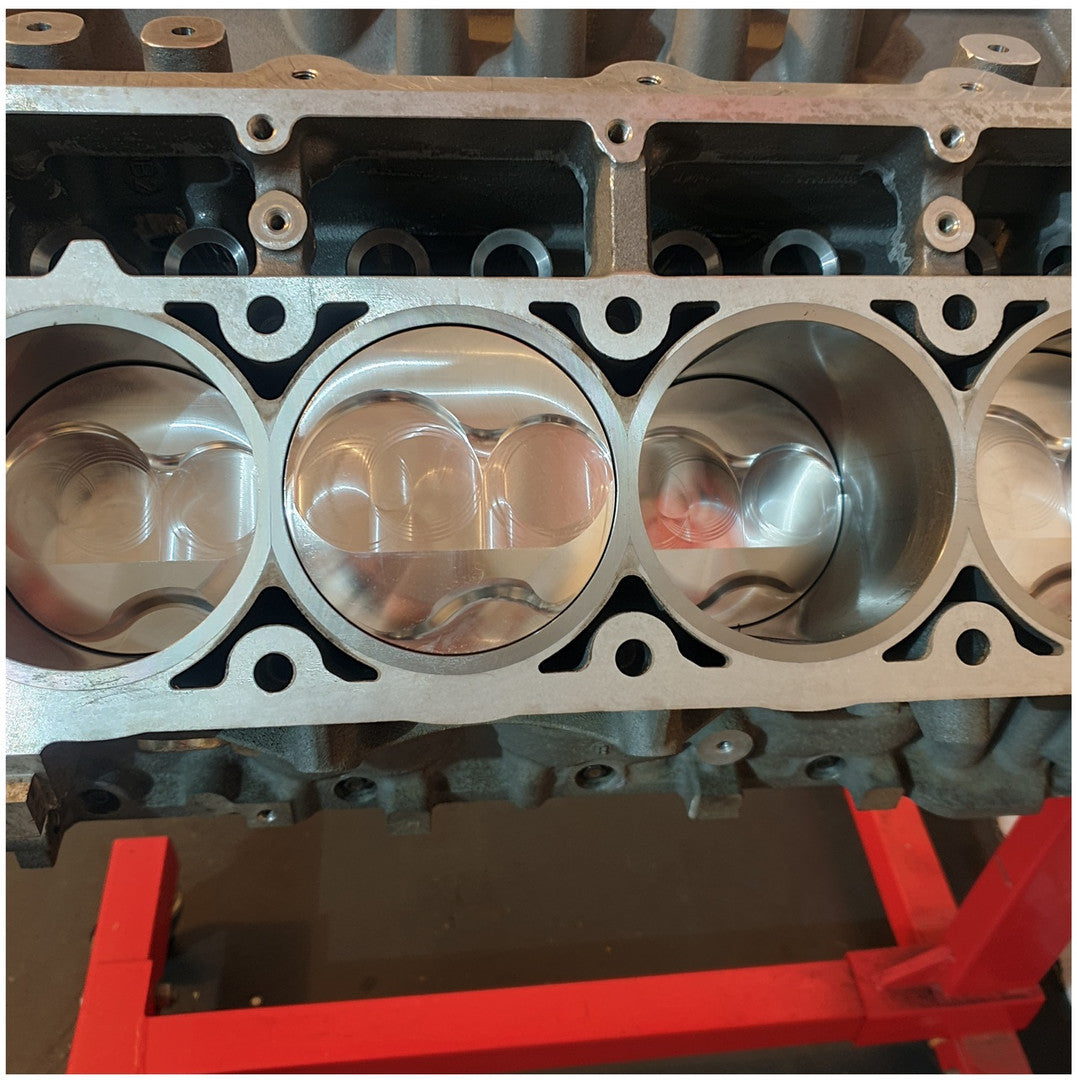

Pistons Carrillo CP 'Bullet Series' Pistons
Part # CUSTOM ORDERED
Material Premium Forged 2618 Alloy
Bore 4.070"
Stroke 4.00"
Comp Height 1.110"
Volume +5cc
Style Dome Top
Comp Ratio 12.9:1 @ 68cc Chamber (Advertised comp ratio)
Main Bearings ACL 'Race Series'
Conrod Bearings ACL 'Race Series'
Cam Bearing Durabond Coated
Main Studs ARP Main Studs
Windage 4.00" Windage Tray Assembly
Camshaft Texas Speed Hydraulic Camshaft
Cam Core Billet Core
Duration 246/254
Lobe Sep @ 110
Intake .620"
Exhaust .600"
Timing Chain Rollmaster 'RED SERIES' Timing Chain Set
Balancer ATI Balancer
Bolt ARP Balancer Bolt
Sump Moroso LS Retro Fit Baffled Low Profile Wet Sump
Pump Melling 'Select Series' 18% Pressure Oil Pump
Bracket Philadelphia Racing Products Billet Oil Pickup Support
Castings Genuine GM LS3 Cylinder Heads
Porting Tremaniac Racing Full 5-Axis CNC Port & Polish Job
Valves Aftermarket Stainless Steel Valves
Valve Springs PAC Racing .660" Platinum Polished Dual Valve Springs Kit
Seals Viton Valve Seals
Guides PAC Racing Guides
Retainers Titanium Retainers
Lifters Genuine GM LS7 Lifters
Guides Genuine GM AC Delco Lifter Guide Trays
Fasteners ARP Head Bolts Kit
Gaskets GM LS3 Head Gaskets
Rockers Genuine GM LS3 Rockers
Trunnion CHE Rocker Trunnion Bearing Upgrade
Valley Plate LSX Billet Anodised Valley Plate
Expected Availability Timeframe
Due to this engine being one of our most popular engine packages we constantly keep these in the build.
You can expect a 4 week lead time from time of order. Want to confirm an exact ETA? Give us a call.
Interested In This Engine?
Select a Date & Time below
that suits you to schedule an uninterrupted chat with us.
This ensures we can run through your new engine, inclusions & ensure we manage your expectations.
